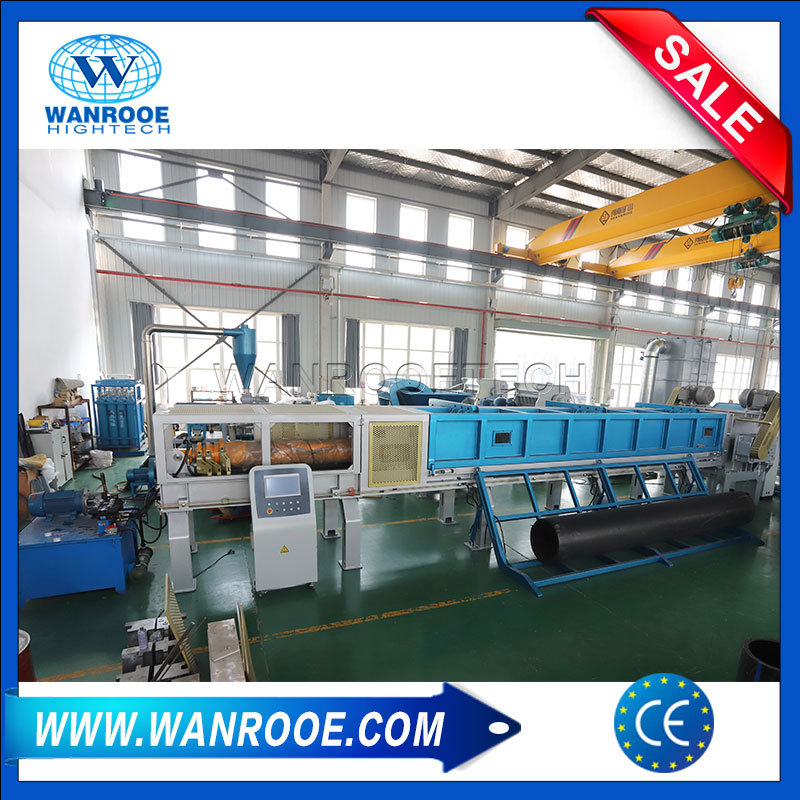

630-1600mm HDPE Plastic Pipe Recycling Shredder Machine

PNGS big diameter plastic pipe shredder are used to shred large diameter pipes or bundles of smaller pipes and profiles made from HDPE, PP and all kinds of PVC. Further, the machines can be used for recycling other plastic parts, such as large lumps, stacked waste bins and pallets. Working principle: Put the material into the feeding trough and then push the material to shred by a hydraulic pushing device. After the shredder, the conveyor, transport the shredded material into the crusher for secondary crushing. In combination with other WANROOETECH size reduction equipment such as granulators and pulverizers, we are able to provide a complete turnkey recycling solution.
Applicable for the whole piece of long pipe, big lumps, large volume tanks.Adopt PLC control,reliable,durable,easy for maintenance.

  • Product Description
  • Technical Parameters
  • Video

HDPE Plastic Pipe Recycling Shredder Machine Application Areas:
PNGS series plastic pipe shredder is suitable for shredding PE pipe, PVC pipe, PP pipe, ABS pipe, large diameter HDPE pipe and profiles which diameter is ^ 1600mm and length is ^6000mm.
Large HDPE plastic pipe shredderHDPE Plastic Pipe Recycling Shredder Machine Description:
PNGS series HDPE pipe shredder is suitable for shredding HDPE, PE, PP, PVC pipes and profiles whose diameter is ^ 1600mm and length is ^6000mm. The main focus of the PNGS shredders is the shredding of large-diameter pipes or bundles of Smaller pipes and profiles made from HDPE, PP and PVC.



The machines can also be used for Recycling other plastic materials such as large lumps, stacked wheelie bins and pallets, etc. In combination with other WANROOTECH size reduction equipment such as granulators, plastic crushers and plastic pulverizers we are able to provide a complete turn-key HDPE pipe recycling solution.



HDPE Plastic Pipe Recycling Shredder Machine Working Principle:
Put the HDPE pipe material into the feeding trough and then push the HDPE pipe to shred with a hydraulic pushing device. After the shredder, the conveyor transports the shredded material into the crusher for secondary crushing.



HDPE Plastic Pipe Recycling Shredder Machine Components:

Long Hydraulic Ram Travel plastic pipe shredder rotor
Long Hydraulic Ram Travel
– Ram travel as long as 6 meters, allows long pipes to be fed in without pre-cutting
– Equipped with a powerful hydraulic pack
– capable of handling heavy and large-diameter pipes
Rotor
– V-Cutting Rotor Design- with staggered cutter positioning Heat-treated rotor blades – special dc53 steel, four edges use before replacement
– Adjustable counter blades- cutter clearance can be re-positioned
Automatic feeding flip Double Drive Device
Automatic Feeding Flip
Hydraulic-powered feeding flip for loading heavy and large-diameter pipes
Double Drive Device
Equipped with hardened gear double reducer, strong power, with efficient shredding capacity. Large ultra-thick pipe can also be equipped with a hydraulic coupling to prevent overload damage to the spindle rotor as well as the motor.
Hydraulic System
Dual Electronic Control Cabinets
Touch screen remote control + conventional electronic control cabinet, even if the touch screen remote control fails, the conventional control cabinet keeps the machine running
Hydraulic System
The pressure and rate of flow can be adjusted according to different materials.



HDPE Plastic Pipe Recycling Shredder Machine Features:

1. Horizontal shredder for shredding longer and larger materials, diameter  630-1600mm, length less than 6000mm. materials without cutting can be a one-time feeding.

2. Horizontal shredder adopts single shaft drive system, which greatly improves the capacity and shredding efficiency.

3. built-in hydraulic system to push the material to the spindle shredding, with a key start, emergency stop, overload protection and other protective features to ensure the stability of the machine operation and maintain high efficiency.

4. The electric control system is safe and easy to operate on the basis of a key start, emergency stop, overload protection and other protective functions to ensure the stability of machine operation and maintain high efficiency.



Related equipment:

Leave a Reply

Your email address will not be published. Required fields are marked *

Model PNGS-800 PNGS-1000 PNGS-1200 PNGS-1500 PNGS-2000
Shredding Chamber Size (mm) 750*790 960*790 1140*1160 1340*1360 1540*1540
Rotor diameter (mm) 850 1030 1280 1500 2000
Speed (RPM) 40 36 30 23 17
MAX Pipe diameter (mm) 630 800 1000 1200 1600
Hydraulic System Motor(KW) 11 15 15 15 18.5
Main Motor (KW) 30+30 37+37 45+45 55+55 75+75
Output (KG/H) 800-1000 1000-1500 1200-1800 1500-2000 2000-3000
