Used Wood Pallet Tray Shredder For Sale

Waste tray shredder, wood tray shredder is suitable for shredding solid material such as wood pallets, timber, pallets, wood crates, wood boxes, MDF, Chipboard, OSB, Hardwood, Softwood, Veneers (mixed with wood), Cardboards (mixed with wood), Logs, Pallets, Bark, Chipboards, Sawmill waste (wet or dry), Wood residue, Cap timber, Veneer, MDF boards, Bark, Solid Timber Waste and Demolition wood, pine, miscellany wood, Yang wood, fir, original bamboo, waste tray, wood, MDF composite board, etc.

  • Product Description
  • Technical Parameters
  • Video

Used Wood Pallet Tray Shredder Application:
Waste tray shredder, wood tray shredder is suitable for shredding solid material such as wood pallets, timber, pallets, wood crates, wood boxes, MDF, Chipboard, OSB, Hardwood, Softwood, Veneers (mixed with wood), Cardboards (mixed with wood), Logs, Pallets, Bark, Chipboards, Sawmill waste (wet or dry), Wood residue, Cap timber, Veneer, MDF boards, Bark, Solid Timber Waste and Demolition wood, pine, miscellany wood, Yang wood, fir, original bamboo, waste tray, wood, MDF composite board, etc.


Used Wood Pallet Tray Shredder Description:
Used Wood Pallet Tray Shredder For Sale with loading hoppers, equipped with high quality cutters with low rotation speed for a lower energy consumption and noise reduction.;It incorporates two counter-rotating shafts that intermesh with each other (2 shafts with sharp elements constituted by sharp-corners disks provided with hooks; Every hook has the task to hook the product and drive-it by the action of the two counter-rotating shafts). The material is powerfully torn and shredded by the talons of the cuttings discs. Specially designed rotor makes the shredder be extremely wear resistant.

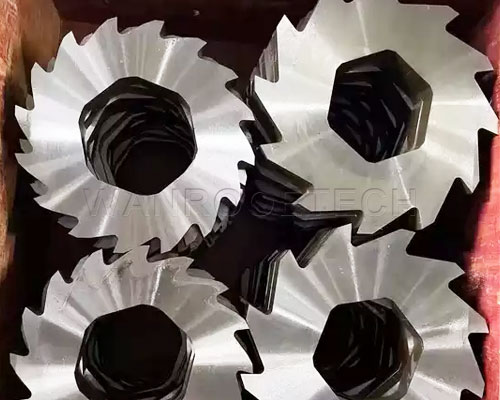

double shaft shredder blade:
double shaft shredder blade

Used Wood Pallet Tray Shredder Working principle:
Used Wood Pallet Tray Shredder For Sale is to cut and shred the materials through the relative rotating of the two sets of cutter shaft, the mutual shearing among the blades of moving knives & the cutter heads and the distance sleeves. The outlet-material control of double-shaft shredder is adopted the network design, the width and length of outlet-material are determined on the width of the cutter, and the distance of cutter heads. Two groups of cutter shaft is rotating on different speed which lead to the shearing and shredding materials simultaneously, it improves the efficiency of shredding.



Used Wood Pallet Tray Shredder Components:

double shaft shredder chassis Shredder spindle
Shredder Chassis
The whole chassis is made of welded steel plate and finely machined by CNC gantry milling, which has high bearing capacity, high impact resistance and more stable quality.
Shredder Spindle
The shredder spindle is made of high alloy, forged and heat-treated and tempered as a whole, and then machined into hexagonal, octagonal and spline form by CNC gantry milling after fine turning, with long service life.
double shaft shredder blade Segmented Blades
Shredder Blade
The shredder blade is made of special steel, forged, faded, refined, vacuum heat treatment, computerized wire cutting, CNC grinding machine processing.
Segmented Blades
The segmented blade design can greatly reduce the blade changing time and cost. The blade comprises of the blade holder, and two types of blade segments, with and without hooks. Worn blade segments can quickly and easily be removed and replaced by simply removing the securing screws.
motor Planetary reducer
Motor
The motor adopts Siemens, Wanan and other domestic brands of pure copper motor, with stable and reliable quality, and can be customized according to requirements.
Planetary Reducer
The reducer chassis adopts welded box, helical gear, planetary gear transmission, with small volume, low noise, high torque and other characteristics, higher transmission efficiency.
conveyor belt double shaft shredder electronic control
Belt Conveyor(Optional)
The waste is conveyed into the shredder through the belt feeding device, and the speed of the conveyor belt is automatically adjusted according to the current of the shredder.
Electronic Control
The whole model adopts frequency conversion control and conforms to international standards such as CE/CSA.

Used Wood Pallet Tray Shredder Technical Features:
1. Our shredders can be employed as either a primary or secondary shredder and can be seen working anywhere from the waste management company to biofuel producers;
2. Dual shafted, slow-speed, high-torque waste shredder with hardened steel cutters;
3. The two cutting rotors powerfully grab the feed material, and no matter the feed material is large piece of hard plastic or heavy tires, this machine can easily shred them into small pieces;
4. Double shaft shredder is able to process a number of different materials; shredder is designed with a powerful engine, long working length and aggressive input, Internal feeding volume bigger than traditional and common single shaft shredder machine and allow you using forklift truck to feed.
5. Heavy structure: the frame and structure of our shredders are made of high-thickness sheets and tubular. Blades are manufactured from high quality steel, suitable for shredding tough materials and for extra long life;
6. Depending on the requirement, these discs (blades) are available in a wide range of quantities, qualities and shapes with the new double-shaft shredder;
7. Any overloads caused by foreign material are sensed by the PLC controller and cause the shaft rotation to stop and reverse direction to clear the foreign matter, and then resume;
8. Cutters removal and replacement can be carried out safely and simply.
9. Our shredders Use a planetary reducer, not a traditional gearbox, and the planetary gearbox has the following advantages: High Efficiency, Greater Stability, Compact Size, Higher Torque Density, Cost Effective Precision, High Radial Loads.

Leave a Reply

Your email address will not be published. Required fields are marked *

Model Shredder Motor Power (kw) Shredding Chamber Size(mm)
PNSS-300 5.5 510×300
PNSS-400 7.5 510×400
PNSS-600 7.5+7.5 510×600
PNSS-800 11+11 600×800
PNSS-1000 18.5+18.5 800×1000
PNSS-1200 30+30/22+22 1000×1200
PNSS-1400 45+45 1400×1200
PNSS-1600 55+55 1600×1200
PNSS-1800 75+75 1800×1400
PNSS-2000 90+90 2000×1400
