800-1500mm HDPE Plastic Pipe Recycling Shredder Machine

PNGS big diameter plastic pipe shredder are used to shred large diameter pipes or bundles of smaller pipes and profiles made from HDPE, PP and all kinds of PVC. Further, the machines can be used for recycling other plastic parts, such as large lumps, stacked waste bins and pallets. Working principle: Put the material into the feeding trough and then push the material to shred by a hydraulic pushing device. After the shredder, the conveyor, transport the shredded material into the crusher for secondary crushing. In combination with other WANROOETECH size reduction equipment such as granulators and pulverizers, we are able to provide a complete turnkey recycling solution.
Applicable for the whole piece of long pipe, big lumps, large volume tanks.Adopt PLC control,reliable,durable,easy for maintenance.

  • Product Description
  • Technical Parameters
  • Video

Application Areas:
PNGS series plastic pipe shredder is suitable for shredding PE pipe, PVC pipe, PP pipe, ABS pipe, large diameter HDPE pipe and profiles which diameter is ^ 1200mm and length is ^6000mm.
Large HDPE plastic pipe shredderDescription:
PNGS big diameter plastic pipe shredder are used to shred large diameter pipes or bundles of smaller pipes and profiles made from HDPE, PP and all kinds of PVC. Further, the machines can be used for recycling other plastic parts, such as large lumps, stacked waste bins and pallets. Working principle: Put the material into the feeding trough and then push the material to shred by a hydraulic pushing device. After the shredder, the conveyor, transport the shredded material into the crusher for secondary crushing. In combination with other WANROOETECH size reduction equipment such as granulators and pulverizers, we are able to provide a complete turnkey recycling solution.
Applicable for the whole piece of long pipe, big lumps, large volume tanks.Adopt PLC control,reliable,durable,easy for maintenance.

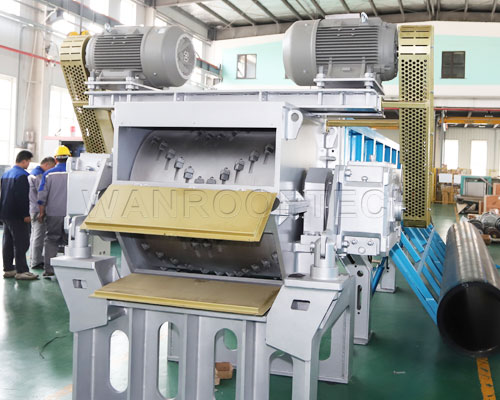

High Capacity Large Diameter Plastic Pipe Shreder Componment

Features:
1. The shredder single shaft for plastic can shred various bulk materials, basket materials, pipe, plate, sheet, tire, big roll film
2. The frame is combinational structures, made from precision machined extra-thick sheet, slewing axis is forced, Lange-angle, hexagonal prism, the hopper is large-caliber and substantial, so good-sized material is practicable.
3. Revolving knife is designed and processed particular in thickness, shape.

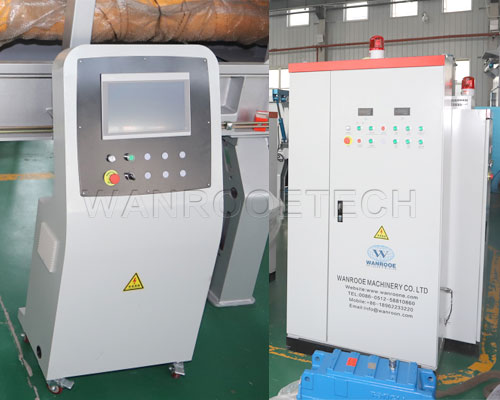

4. PLC control system, forward and reverse operate and stop automatically can protect the machine when the materials are too big and much. Operate safely, low-speed running, low noise, little dust.

Leave a Reply

Your email address will not be published.

Model PNGS-800 PNGS-1000 PNGS-1200 PNGS-1500 PNGS-2000
Shredding
Chamber
Size
(mm)
750*790 960*790 1140*1160 1340*1360 1540*1540
Rotor
diameter
(mm)
850 1030 1280 1500 2000
Speed
(RPM)
40 36 30 23 17
MA*
Pipe
diameter
(mm)
630 800 1000 1200 1600
Hydraulic
System
Motor
(KW)
11 15 15 15 18.5
Main
Motor
(KW)
30+30 37+37 45+45 55+55 75+75
Output
(KG/H)
800-1000 1000-1500 1200-1800 1500-2000 2000-3000
